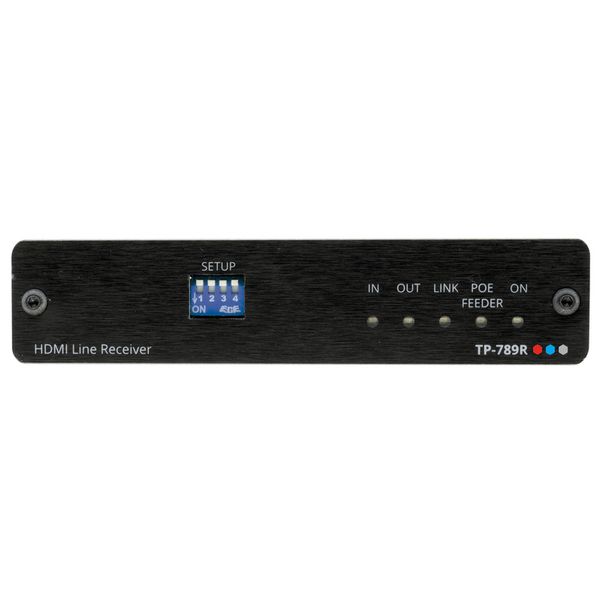

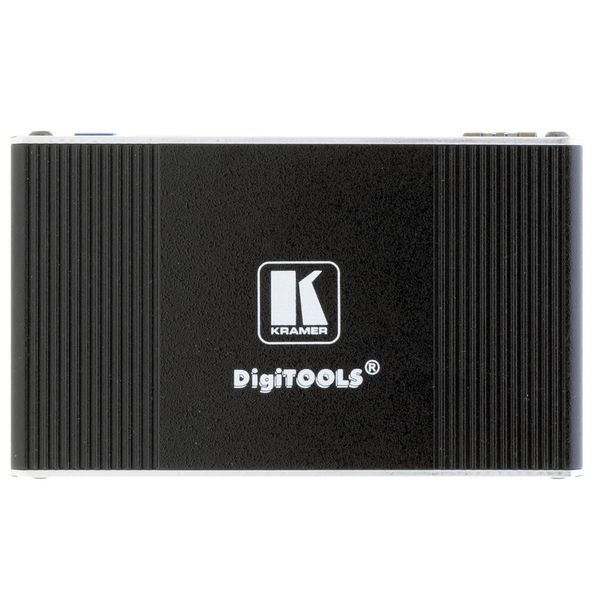

Kramer TP-789R HDBaseT Receiver

HDBaseT Receiver

• 4K60 4:2:0 HDMI bidirectional PoE receiver with RS-232, IR and long operating range via HDBaseT
• Transmits video signals via copper cable up to 40 m at a resolution of up to 4K @ 60 Hz (4:2:0) and 24 bpp and offers even more range for lower HD video resolutions

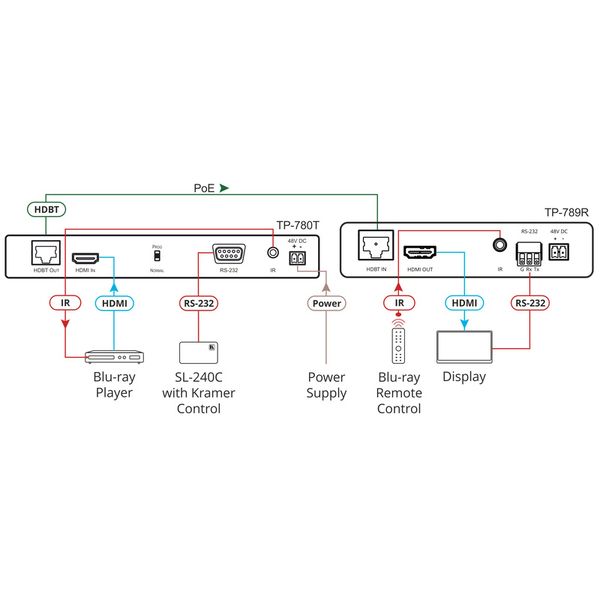

• Supplies a POE (Power over Ethernet) device such as a PoE wallplate with power via the copper extension cable or accepts PoE via the extension cable of a remote device of the PoE transmitter; this is automatically recognised by the device
• HDMI signal extension: Supports Deep Color, x.v.Color, lip-sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS-HD, 2K, 4K and 3D
• EDID and CEC signals are routed from the source to the display
• Intelligent EDID pass-through algorithm that ensures plug & play operation for HDMI source and display systems
• Multi-channel audio expansion: up to 32 uncompressed digital stereo signals to support studio-quality surround sound
• Bidirectional RS-232 extension: serial interface data flows in both directions and enables data transmission and device control
• Bidirectional infrared extension: the data from the IR interface flows in both directions and enables remote control of peripheral devices at both ends of the extended line

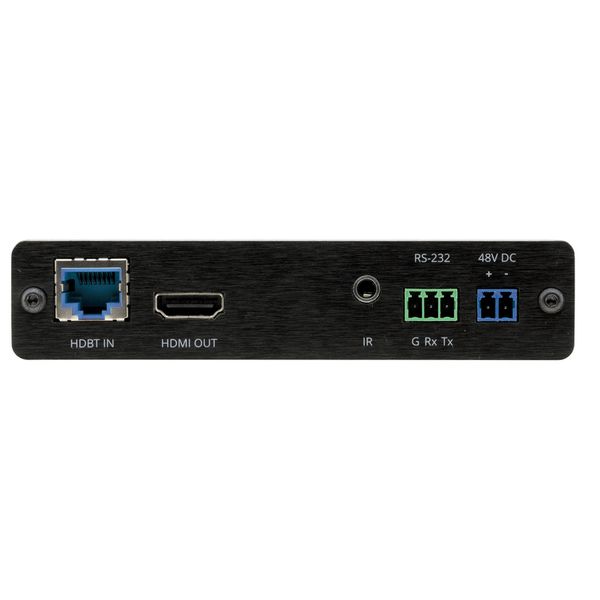

• Input: 1 x HDBT on an RJ-45 socket
• Output: 1 x HDMI
• Data prots: 1x IR on a 3.5 mm mini socket / 1 RS-232: on a 3-pin terminal block for extending the serial connection and updating the device firmware
• Extension: HDBaseT 1.0 compliant / up to 40 m with 4K @ 60 Hz (4:2:0) / up to 70 m with Full HD (1080p @ 60 Hz) (values apply when using Kramer HDBaseT cables)
• Max. video data rate: 10.2 Gbit/s (3.4 Gbit/s per graphics channel)
• Max. video resolution: 4K @ 60 Hz (4:2:0) 24 bpp
• RS-232 extension: 300 to 115,200 bit/s
• Cooling: Convection ventilation
• Power supply: 48 V DC 1.36 A
• Dimensions: 12 x 7.2 x 2.44 cm
• Weight: 0.2 kg
