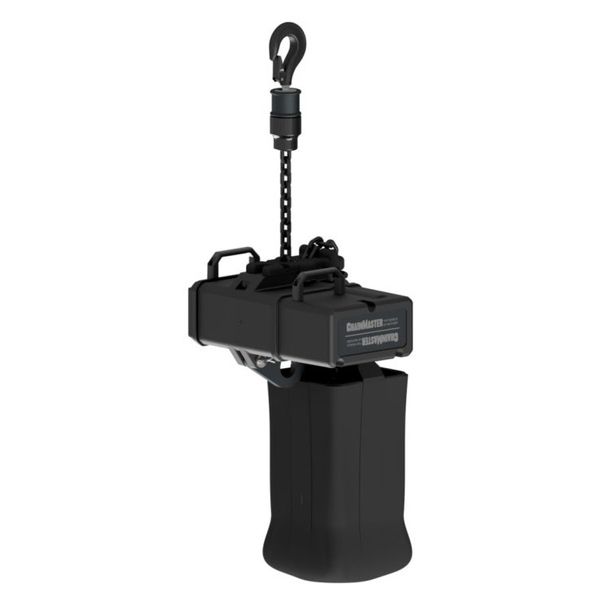

ChainMaster Chain Hoist 500kg D8+ Ultra

Electric Chain Hoist

• D8 Plus electric chain hoist from the Ultra series
• 25 m chain length
• Cast aluminium alloy housing
• Black RAL 9005 silk-matte finish
• Lightweight and compact design with low-noise operation
• Chain box made of textile material
• Two spring-loaded brakes with ventilation via DC magnets
• Slip clutch to protect the motor
• Chain drive plate made of polyamide
• Precise chain drive with 5-pocket sprocket
• Operating coefficient load chain: - Eight (according to SQP2 2018-10)
• Hook block for 1-strand operation
• Stationary or hoist operation
• 1 m CEE-16/4 connection cable
• Two handles
• Model designation: SK030 / 76U
• Lifting speed: 4 m/min
• Maximum load capacity: 500 kg
• Load strands: One
• Load chain according to EN 818-7: P5.4 x 15 mm (profile steel)
• Suspension: Single-hole suspension eyelet for shackles
• Drive unit Hoist FEM/ ISO: 2 m/ M5 4
• Duty cycle - circuits/h: ED 40% - 240 S/h
• Operating mode: S3 (according to IEC 60034-1)
• Noise level: 74 dBA / 1 m distance
• Motor type: K2OR 63G4E
• Motor speed: 1380 rpm
• Weight (without chain): Approx. 20 kg
• Weight of chain: Approx. 0.59 kg / m
• Motor power: 0.37 KW
