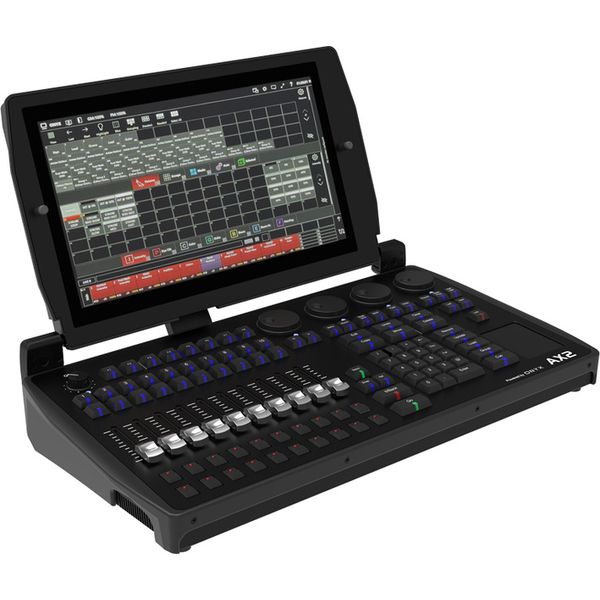

ADJ AX2

Lighting Console

• Compact, portable lighting console with a full range of features
• Based on the innovative ONYX platform and features a bright 15.6" full HD multi-touch screen with support for two external 4K touch displays
• Eight assignable parameter encoders
• Supporting mini touchscreen
• Full keyboard and control section
• Dedicated Grand Master and ten playbacks with freely assignable buttons
• Fast boot times, instant readiness for operation and the ability to process 32 universes directly within the console without the need for external processors result in unrivalled performance in this form factor
• Four DMX ports, timecode, MIDI and dual Gigabit ports for up to 32 universes, as well as Art-Net, sACN and the ONYX X-Net protocol, the AX2 offers the connectivity and performance required to meet the ever-growing demands of the entertainment industry
• Identical software for all consoles and PC
• Optimised user interface for mouse and touchscreen operation
• Powerful yet easy-to-use effects engine
• Intuitive plug & play network infrastructure
• Complete show synchronisation including patch via network
• Monitor connections: 2x DisplayPort (up to 4K)
• Four DMX lines: 5-pin XLR
• Storage medium: 500 GB NVMe SSD
• Four USB 3.0 ports
• One USB 2.0 port
• 32 ArtNet/sACN channels
• MIDI
• SMPTE (LTC)
• Built-in audio
• Includes external power supply (12V AC)
• Input: 100–240 V, 50/60 Hz
• Max. power consumption: 3 A
• Output: 12 V / 11 A (max. 132 W)
• Dimensions (L x W x H): 540 x 300 x 121 mm
• Weight: 4.6 kg
• Includes external power supply, power cable, RGB LED desk lamp, dust cover, USB cable, USB recovery stick and user manual
